CameraCC3200DMA.h File Reference

Detailed Description

Camera driver implementation for a CC3200 Camera controller.

============================================================================

The Camera header file should be included in an application as follows:

#include <ti/drivers/Camera.h>
#include <ti/drivers/Camera/CameraCC3200DMA.h>

---

#include <stdint.h>
#include <stdbool.h>
#include <ti/drivers/Camera.h>
#include <ti/drivers/ports/HwiP.h>
#include <ti/drivers/ports/SemaphoreP.h>

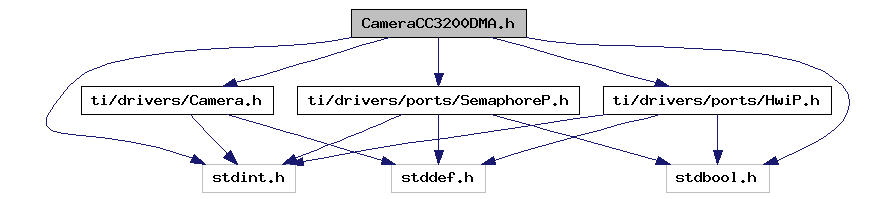

Include dependency graph for CameraCC3200DMA.h:

Go to the source code of this file.

Data Structures
struct	CameraCC3200DMA_HWAttrs
	CameraCC3200DMA Hardware attributes. More...
struct	CameraCC3200DMA_Object
	CameraCC3200DMA Object. More...

Macros
#define	CameraCC3200DMA_DMA_TRANSFER_SIZE   64

Typedefs
typedef struct CameraCC3200DMA_HWAttrs	CameraCC3200DMA_HWAttrs
	CameraCC3200DMA Hardware attributes. More...
typedef struct CameraCC3200DMA_Object	CameraCC3200DMA_Object
	CameraCC3200DMA Object. More...
typedef struct CameraCC3200DMA_Object *	CameraCC3200DMA_Handle

Variables
const Camera_FxnTable	CameraCC3200DMA_fxnTable

Macro Definition Documentation

#define CameraCC3200DMA_DMA_TRANSFER_SIZE   64

Typedef Documentation

typedef struct CameraCC3200DMA_HWAttrs CameraCC3200DMA_HWAttrs

CameraCC3200DMA Hardware attributes.

These fields are used by driverlib APIs and therefore must be populated by driverlib macro definitions. For CC3200Ware these definitions are found in:

• inc/hw_memmap.h
• inc/hw_ints.h

A sample structure is shown below:

const CameraCC3200DMA_HWAttrs CameraCC3200DMAHWAttrs[] = {
    {
        .baseAddr = CAMERA_BASE,
        .intNum = INT_CAMERA,
        .intPriority = (~0),
        .channelIndex = UDMA_CH22_CAMERA
    }
};

typedef struct CameraCC3200DMA_Object CameraCC3200DMA_Object

CameraCC3200DMA Object.

The application must not access any member variables of this structure!

typedef struct CameraCC3200DMA_Object * CameraCC3200DMA_Handle

Variable Documentation

const Camera_FxnTable CameraCC3200DMA_fxnTable
