universal.h File Reference

---

Detailed Description

The "universal" algorithm interface. Provides the user an interface to create and interact with XDAIS algorithms that are compliant with the XDM IUNIVERSAL interface.

#include <ti/xdais/dm/xdm.h>
#include <ti/xdais/dm/iuniversal.h>
#include <ti/sdo/ce/Engine.h>
#include <ti/sdo/ce/visa.h>
#include <ti/sdo/ce/skel.h>

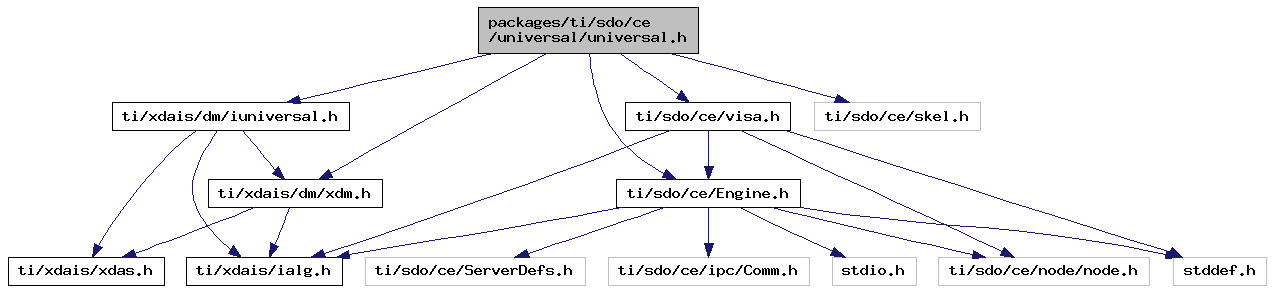

Include dependency graph for universal.h:

Go to the source code of this file.

Data Structures
struct	IUNIVERSAL_CodecClassConfig
	Definition of IUNIVERSAL codec class configurable parameters. More...

Macros
#define	UNIVERSAL_EOK   IUNIVERSAL_EOK
#define	UNIVERSAL_EFAIL   IUNIVERSAL_EFAIL
#define	UNIVERSAL_EUNSUPPORTED   IUNIVERSAL_EUNSUPPORTED
#define	UNIVERSAL_ETIMEOUT   VISA_ETIMEOUT
	Special value for timeout parameter indicating never timeout.
#define	UNIVERSAL_FOREVER   VISA_FOREVER
#define	UNIVERSAL_STUBSNAME   "UNIVERSAL_STUBS"
	Name of stub functions. Use this name when registering the UNIVERSAL_STUBS functions with Engine_addStubFxns.
#define	UNIVERSAL_VISATYPE   "ti.sdo.ce.universal.IUNIVERSAL"
	The VISA type.

Typedefs
typedef VISA_Handle	UNIVERSAL_Handle
	Opaque handle to a UNIVERSAL codec.
typedef struct IUNIVERSAL_Params	UNIVERSAL_Params
	This structure defines the parameters necessary to create an instance of a "universal" algorithm.
typedef IUNIVERSAL_InArgs	UNIVERSAL_InArgs
	Defines the input arguments for all IUNIVERSAL instance process function.
typedef IUNIVERSAL_OutArgs	UNIVERSAL_OutArgs
	Defines the run time output arguments for all IUNIVERSAL instance objects.
typedef IUNIVERSAL_Cmd	UNIVERSAL_Cmd
	Defines the control commands for the IUNIVERSAL module.
typedef IUNIVERSAL_Status	UNIVERSAL_Status
	Defines instance status parameters (read-only).
typedef IUNIVERSAL_DynamicParams	UNIVERSAL_DynamicParams
	This structure defines the codec parameters that can be modified after creation via control() calls.
typedef struct IUNIVERSAL_CodecClassConfig	IUNIVERSAL_CodecClassConfig
	Definition of IUNIVERSAL codec class configurable parameters.

Functions
Int32	UNIVERSAL_control (UNIVERSAL_Handle handle, UNIVERSAL_Cmd id, UNIVERSAL_DynamicParams *params, UNIVERSAL_Status *status)
	Execute the control() method in this instance of a "universal" algorithm.
UNIVERSAL_Handle	UNIVERSAL_create (Engine_Handle e, String name, UNIVERSAL_Params *params)
	Create an instance of a universal algorithm.
Void	UNIVERSAL_delete (UNIVERSAL_Handle handle)
	Delete the instance of a universal algorithm.
Int32	UNIVERSAL_process (UNIVERSAL_Handle handle, XDM1_BufDesc *inBufs, XDM1_BufDesc *outBufs, XDM1_BufDesc *inOutBufs, UNIVERSAL_InArgs *inArgs, UNIVERSAL_OutArgs *outArgs)
	Execute the process() method in this instance of a universal algorithm.
XDAS_Int32	UNIVERSAL_processAsync (UNIVERSAL_Handle handle, XDM1_BufDesc *inBufs, XDM1_BufDesc *outBufs, XDM1_BufDesc *inOutBufs, IUNIVERSAL_InArgs *inArgs, IUNIVERSAL_OutArgs *outArgs)
	Perform asynchronous submission to this instance of a universal algorithm.
XDAS_Int32	UNIVERSAL_processWait (UNIVERSAL_Handle handle, XDM1_BufDesc *inBufs, XDM1_BufDesc *outBufs, XDM1_BufDesc *inOutBufs, IUNIVERSAL_InArgs *inArgs, IUNIVERSAL_OutArgs *outArgs, UInt timeout)
	Wait for a return message from a previous invocation of UNIVERSAL_processAsync() in this instance of a universal algorithm.
