Detailed Description

Remote Command Message Client Module. An RcmClient is used for sending messages to an RcmServer for processing.

See Also: RcmServer.h
RCM Overview

#include <xdc/runtime/knl/GateThread.h>

Include dependency graph for RcmClient.h:

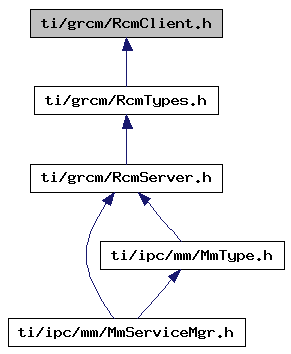

This graph shows which files directly or indirectly include this file:

Data Structures
struct	RcmClient_Message
	Remote Command Message structure. More...

struct	RcmClient_Params
	Instance create parameters. More...

struct	RcmClient_Struct
	Opaque client structure large enough to hold an instance object. More...

Macros
#define	RcmClient_S_SUCCESS (0)
	Success return code. More...

#define	RcmClient_E_FAIL (-1)
	General failure return code. More...

#define	RcmClient_E_EXECASYNCNOTENABLED (-2)
	The client has not been configured for asynchronous notification. More...

#define	RcmClient_E_EXECFAILED (-3)
	The client was unable to send the command message to the server. More...

#define	RcmClient_E_INVALIDHEAPID (-4)
	A heap id must be provided in the create params. More...

#define	RcmClient_E_INVALIDFXNIDX (-5)
	Invalid function index. More...

#define	RcmClient_E_MSGFXNERROR (-6)
	Message function error. More...

#define	RcmClient_E_IPCERROR (-7)
	An unknown error has been detected from the IPC layer. More...

#define	RcmClient_E_LISTCREATEFAILED (-8)
	Failed to create the list object. More...

#define	RcmClient_E_LOSTMSG (-9)
	The expected reply message from the server was lost. More...

#define	RcmClient_E_MSGALLOCFAILED (-10)
	Insufficient memory to allocate a message. More...

#define	RcmClient_E_MSGQCREATEFAILED (-11)
	The client message queue could not be created. More...

#define	RcmClient_E_MSGQOPENFAILED (-12)
	The server message queue could not be opened. More...

#define	RcmClient_E_SERVERERROR (-13)
	The server returned an unknown error code. More...

#define	RcmClient_E_SERVERNOTFOUND (-14)
	The server specified in the create params was not found. More...

#define	RcmClient_E_SYMBOLNOTFOUND (-15)
	The given symbol was not found in the server symbol table. More...

#define	RcmClient_E_NOMEMORY (-16)
	There is insufficient memory left in the heap. More...

#define	RcmClient_E_JOBIDNOTFOUND (-17)
	The given job id was not found on the server. More...

#define	RcmClient_INVALIDFXNIDX ((UInt32)(0xFFFFFFFF))
	Invalid function index. More...

#define	RcmClient_INVALIDHEAPID ((UInt16)(0xFFFF))
	Invalid heap id. More...

#define	RcmClient_INVALIDMSGID (0)
	Invalid message id. More...

#define	RcmClient_DEFAULTPOOLID ((UInt16)(0x8000))
	Default worker pool id. More...

#define	RcmClient_DISCRETEJOBID (0)
	Invalid job stream id. More...

Typedefs
typedef struct RcmClient_Object_tag *	RcmClient_Handle
	RcmClient instance object handle. More...

typedef Void(*	RcmClient_CallbackFxn )(RcmClient_Message *, Ptr)
	Callback function type. More...

Functions
Int	RcmClient_acquireJobId (RcmClient_Handle handle, UInt16 *jobId)
	Get a job id from the server. More...

Int	RcmClient_addSymbol (RcmClient_Handle handle, String name, Fxn addr, UInt32 *index)
	Add a symbol and its address to the server table. More...

Int	RcmClient_alloc (RcmClient_Handle handle, UInt32 dataSize, RcmClient_Message **message)
	Allocate a message from the heap configured for this instance. More...

Int	RcmClient_checkForError (RcmClient_Handle handle, RcmClient_Message **returnMsg)
	Check if an error message has been returned from the server. More...

Int	RcmClient_construct (RcmClient_Struct structPtr, String server, const RcmClient_Params params)
	Initialize a new instance object inside the provided structure. More...

Int	RcmClient_create (String server, const RcmClient_Params params, RcmClient_Handle handle)
	Create an RcmClient instance. More...

Int	RcmClient_delete (RcmClient_Handle *handlePtr)
	Delete an RcmClient instance. More...

Int	RcmClient_destruct (RcmClient_Struct *structPtr)
	Finalize the instance object inside the provided structure. More...

Int	RcmClient_exec (RcmClient_Handle handle, RcmClient_Message cmdMsg, RcmClient_Message *returnMsg)
	Execute a command message on the server. More...

Int	RcmClient_execAsync (RcmClient_Handle handle, RcmClient_Message *cmdMsg, RcmClient_CallbackFxn callback, Ptr appData)
	Execute a command message and use a callback for notification. More...

Int	RcmClient_execCmd (RcmClient_Handle handle, RcmClient_Message *cmdMsg)
	Execute a one-way command message on the server. More...

Int	RcmClient_execDpc (RcmClient_Handle handle, RcmClient_Message cmdMsg, RcmClient_Message *returnMsg)
	Execute a deferred procedure call on the server. More...

Int	RcmClient_execNoWait (RcmClient_Handle handle, RcmClient_Message cmdMsg, UInt16 msgId)
	Submit a command message to the server and return immediately. More...

Void	RcmClient_exit (Void)
	Finalize the RcmClient module. More...

Int	RcmClient_free (RcmClient_Handle handle, RcmClient_Message *msg)
	Free the given message. More...

Int	RcmClient_getSymbolIndex (RcmClient_Handle handle, String name, UInt32 *index)
	Return the function index from the server. More...

Void	RcmClient_init (Void)
	Initialize the RcmClient module. More...

Void	RcmClient_Params_init (RcmClient_Params *params)
	Initialize the instance create params structure. More...

Int	RcmClient_releaseJobId (RcmClient_Handle handle, UInt16 jobId)
	Return a job id to the server and release all resources. More...

Int	RcmClient_removeSymbol (RcmClient_Handle handle, String name)
	Remove a symbol and from the server function table. More...

Int	RcmClient_waitUntilDone (RcmClient_Handle handle, UInt16 msgId, RcmClient_Message **returnMsg)
	Block until the specified message has been executed. More...
