Engine.h File Reference

---

Detailed Description

The Codec Engine Runtime.

Remarks:

Provides the user an interface to open and manipulate an Engine which can instantiate and communicate with XDAIS algorithms that run either on the local CPU or on a "remote" Server.

#include <ti/sdo/ce/Server.h>
#include <ti/sdo/ce/ipc/Comm.h>
#include <ti/xdais/ialg.h>
#include <ti/sdo/ce/node/node.h>
#include <stddef.h>
#include <stdio.h>

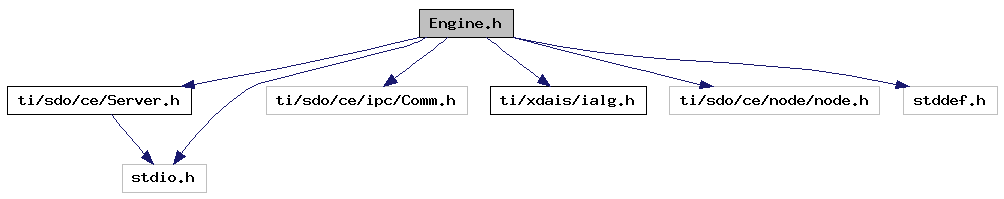

Include dependency graph for Engine.h:

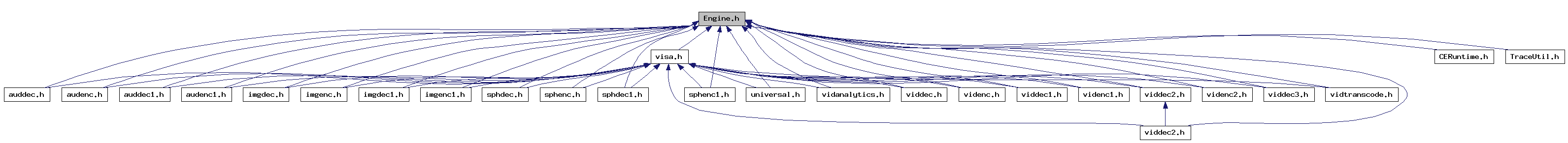

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Data Structures
struct	Engine_Attrs
	Attributes of an Engine. More...
struct	Engine_AlgInfo
	Properties of an Engine algorithm. More...
struct	Engine_AlgInfo2
	Properties of an Engine algorithm. More...
struct	Engine_AlgDesc
	Descriptor for an alg. This object can be passed to Engine_addAlg(), to dynamically add an alg to an engine. More...
struct	Engine_DllAlgDesc
	Descriptor for a dynamically loaded alg. A dynamic library for a codec must export a function that fills in a structure of this type. More...
Defines
#define	Engine_MODNAME   "ti.sdo.ce.Engine"
	Name to pass to Diags_setMask() to enable logging for Engine functions.
#define	Engine_EOK   0
#define	Engine_EEXIST   1
#define	Engine_ENOMEM   2
#define	Engine_EDSPLOAD   3
#define	Engine_ENOCOMM   4
#define	Engine_ENOSERVER   5
#define	Engine_ECOMALLOC   6
#define	Engine_ERUNTIME   7
#define	Engine_ECODECCREATE   8
#define	Engine_ECODECSTART   9
#define	Engine_EINVAL   10
#define	Engine_EBADSERVER   11
#define	Engine_ENOTAVAIL   12
#define	Engine_EWRONGSTATE   13
#define	Engine_EINUSE   14
#define	Engine_ENOTFOUND   15
#define	Engine_ETIMEOUT   16
#define	Engine_GETALGDESCFXN   "GetEngineAlgDesc"
	Name of function that a dynamically loaded codec must supply.
Typedefs
typedef struct Engine_Obj *	Engine_Handle
	Opaque handle to an engine.
typedef Int	Engine_Error
	Engine error code.
typedef struct Engine_Attrs	Engine_Attrs
	Attributes of an Engine.
typedef struct Engine_AlgInfo	Engine_AlgInfo
	Properties of an Engine algorithm.
typedef struct Engine_AlgInfo2	Engine_AlgInfo2
	Properties of an Engine algorithm.
typedef enum Engine_CachedMemType	Engine_CachedMemType
	Engine Cacheable Memory types.
typedef struct Engine_AlgDesc	Engine_AlgDesc
	Descriptor for an alg. This object can be passed to Engine_addAlg(), to dynamically add an alg to an engine.
typedef struct Engine_DllAlgDesc	Engine_DllAlgDesc
	Descriptor for a dynamically loaded alg. A dynamic library for a codec must export a function that fills in a structure of this type.
typedef Int(*	Engine_GetAlgDescFxn )(Engine_DllAlgDesc *dllAlgDesc)
	Prototype of function that must be supplied by a dynamic codec library to fill in a Engine_DllAlgDesc structure.
Enumerations
enum	Engine_CachedMemType {   Engine_USECACHEDMEM_DEFAULT = -1,   Engine_USECACHEDMEM_NONCACHED = 0,   Engine_USECACHEDMEM_CACHED = 1 }
	Engine Cacheable Memory types. More...
Functions
Engine_Error	Engine_addStubFxns (String fxnsName, IALG_Fxns *fxns)
	Register stub functions through which a remote algorithm can be called.
Engine_Error	Engine_add (Engine_Desc *pDesc)
	Add an Engine to the database of engines that can be opened with Engine_open()
Engine_Error	Engine_addAlg (String name, Engine_Handle engine, String location, Engine_AlgDesc *pAlgDesc)
	Dynamically add an algorithm to an Engine.
Engine_Error	Engine_removeAlg (String name, Engine_Handle engine, String algName)
	Dynamically remove an algorithm that was added to an Engine with Engine_addAlg().
Void	Engine_close (Engine_Handle engine)
	Close an Engine.
Void	Engine_initAlgDesc (Engine_AlgDesc *pAlgDesc)
	Initialize an Engine_AlgDesc structure with default values.
Void	Engine_initAttrs (Engine_Attrs *pAttrs)
	Initialize an Engine_Attrs structure with default values.
Void	Engine_initDesc (Engine_Desc *pDesc)
	Initialize an Engine_Desc structure with default values.
Engine_Handle	Engine_open (String name, Engine_Attrs *attrs, Engine_Error *ec)
	Open an Engine.
Int	Engine_fwriteTrace (Engine_Handle engine, String prefix, FILE *out)
	Write Server's trace buffer to specifed file stream.
Engine_Error	Engine_getAlgInfo (String name, Engine_AlgInfo *algInfo, Int index)
	Get details of an algorithm configured into an engine.
Engine_Error	Engine_getAlgInfo2 (String name, Engine_Handle engine, Engine_AlgInfo2 *algInfo2, Int index)
	Get details of an algorithm.
Engine_Error	Engine_getDesc (String name, Engine_Desc *desc)
	Fill in an Engine_Desc structure with the values of the Engine descriptor for an Engine.
Engine_Error	Engine_getLastError (Engine_Handle engine)
	Get error code of the last failed operation.
String	Engine_getName (Engine_Handle engine)
	Get the name of an opened engine.
Engine_Error	Engine_getNumAlgs (String name, Int *numAlgs)
	Get the number of algorithms configured into an Engine.
Engine_Error	Engine_getNumAlgs2 (String name, Engine_Handle engine, Int *numAlgs)
	Get the number of algorithms statically configured into an engine or the total number of algorithms both statically configured and dynamically added through server information when the engine was opened.
Server_Handle	Engine_getServer (Engine_Handle engine)
	Get handle to an Engine's Server.
UInt32	Engine_getUsedMem (Engine_Handle engine)
	Get Server's total memory usage.
Engine_Error	Engine_remove (String engineName)
	Remove an engine from the list of engines that can be opened.
Engine_Error	Engine_setDesc (String name, Engine_Desc *desc)
	Set values for an Engine's descriptor. This function should only be called when the Engine has not yet been opened.
Int	Engine_setTrace (Engine_Handle engine, String mask)
	Set Server's trace mask.
Variables
Engine_Attrs	Engine_ATTRS
	Default engine attributes.
