Example 6. Contents of Hex Map File example2.mxp

*********************************************************
TMS470 Hex Converter               Version x.xx
**********************************************************
Mon Sep 18 19:34:47 1995

INPUT FILE NAME: <a.out>
OUTPUT FORMAT:   Intel

PHYSICAL MEMORY PARAMETERS
   Default data width:    8
   Default memory width:  16
   Default output width:  16

OUTPUT TRANSLATION MAP
---------------------------------------------------------
00000000..0001ffff  Page=0  ROM Width=16  Memory Width=16 "EPROM"
---------------------------------------------------------
   OUTPUT FILES: example2.hex [b0..b15]

   CONTENTS: 00000000..00000003  Data Width=1  secA
             00001000..00001003  Data Width=1  secB

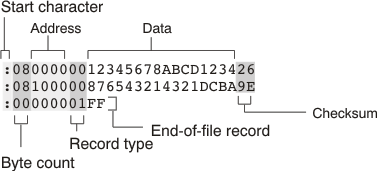

Figure B-4 Contents of Hex Output File example2.hex
