The hex conversion utility makes your memory architecture more flexible by allowing you to specify memory and ROM widths. To use the hex conversion utility, you must understand how the utility treats word widths. Three widths are important in the conversion process:
The terms target word, memory word, and ROM word refer to a word of such a width.

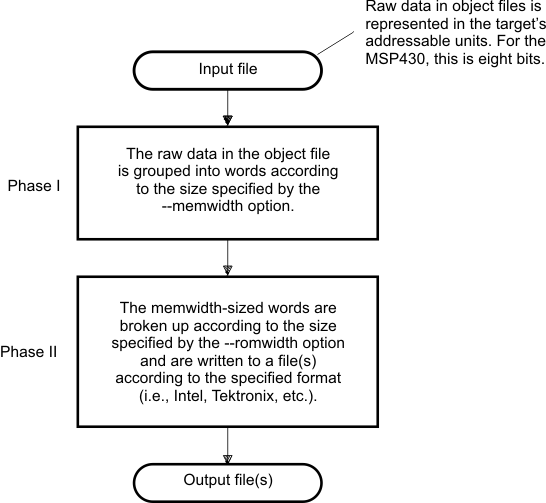

Figure 12-2 illustrates the separate and distinct phases of the hex conversion utility's process flow.
