5.3 Directives that Initialize Values

Several directives assemble values for the current section. For example:

The .byte and .char directives place one or more 8-bit values into consecutive bytes of the current section. These directives are similar to .word, .int, and .long, except that the width of each value is restricted to 8 bits.
The .double directive calculates the IEEE format representation of one or more values and stores them in the current section. The stored value is an IEEE 64-bit double-precision floating-point value, and is stored in two words aligned to a word boundary. (MSP430 has no alignment greater than word alignment.)

The .field directive places a single value into a specified number of bits in the current word. With .field, you can pack multiple fields into a single word; the assembler does not increment the SPC until a word is filled. If a field will not fit in the space remaining in the current word, .field will insert zeros to fill the current word and then place the field in the next word. See the .field topic.

Figure 5-1 shows how fields are packed into a word. Using the following assembled code, notice that the SPC does not change for the first three fields (the fields are packed into the same word):

       1 0000 0003             .field 3,3
       2 0000 0043             .field 8,6
       3 0000 2043             .field 16,5
       4 0002 1234             .field 0x1234,16

Figure 5-1 The .field Directive

The .float directive calculates the IEEE format representation of one or more values and stores them in the current section. The stored value is an IEEE 32-bit single-precision floating-point value, and is stored in one word aligned to a word boundary.
The .int and .word directives place one or more 16-bit values into consecutive 16-bit values in the current section.
The .stringand .cstring directives place 8-bit characters from one or more character strings into the current section. The .string and .cstring directives are similar to .byte, placing an 8-bit character in each consecutive byte of the current section. The .cstring directive adds a NUL character needed by C; the .string directive does not add a NUL character.
The .ubyte, .uchar, .uhalf, .uint, .ulong, .ushort, and .uword directives are provided as unsigned versions of their respective signed directives. These directives are used primarily by the C/C++ compiler to support unsigned types in C/C++.

NOTE

Directives that Initialize Constants When Used in a .struct/.endstruct Sequence

The .bits, .byte, .char, .word, .int, .long, .ubyte, .uchar, .uhalf, .uint, .ulong, .ushort, .uword, .string, .double, .float, .half, .short, and .field directives do not initialize memory when they are part of a .struct/ .endstruct sequence; rather, they define a member’s size. For more information, see the .struct/.endstruct directives.

Figure 5-2 compares the .byte, .char, .int, .long, .float, .word, and .string directives using the following assembled code:

       1 0000 00AA          .byte   0AAh,0BBh
         0001 00BB
       2 0002 00CC          .char   0xCC
       3 0004 DDDD          .word   0xDDDD
       4 0006 FFFF          .long   0xEEEEFFFF
         0008 EEEE
       5 000a DDDD          .int    0xDDDD
       6 000c FCB9          .float  1.9999
         000e 3FFF
       7 0010 0048          .string "Help"
         0011 0065
         0012 006C
         0013 0070

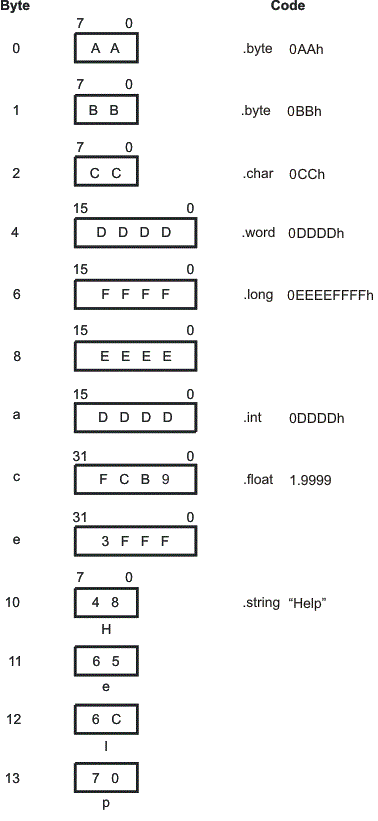

Figure 5-2 Initialization Directives
